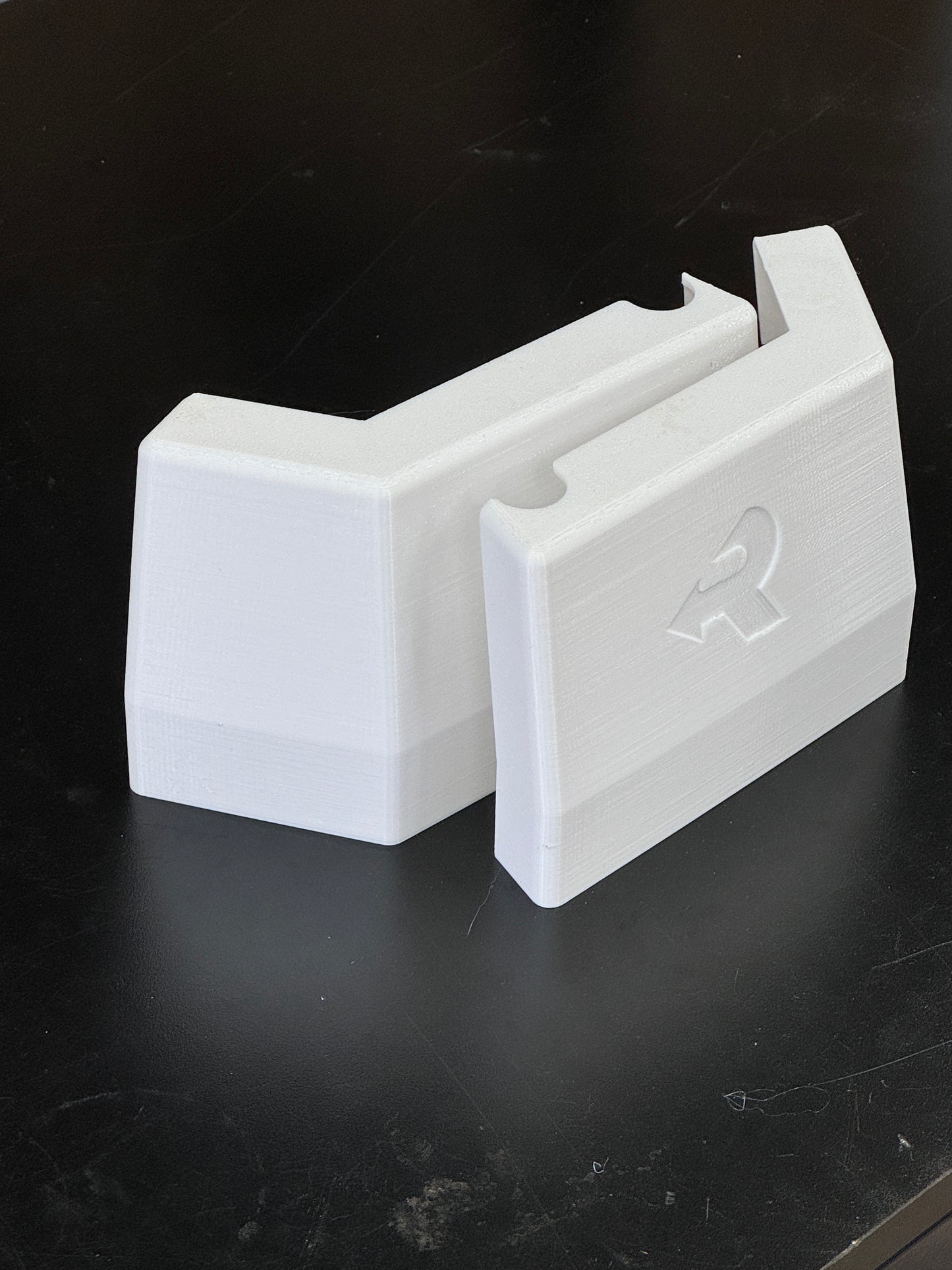

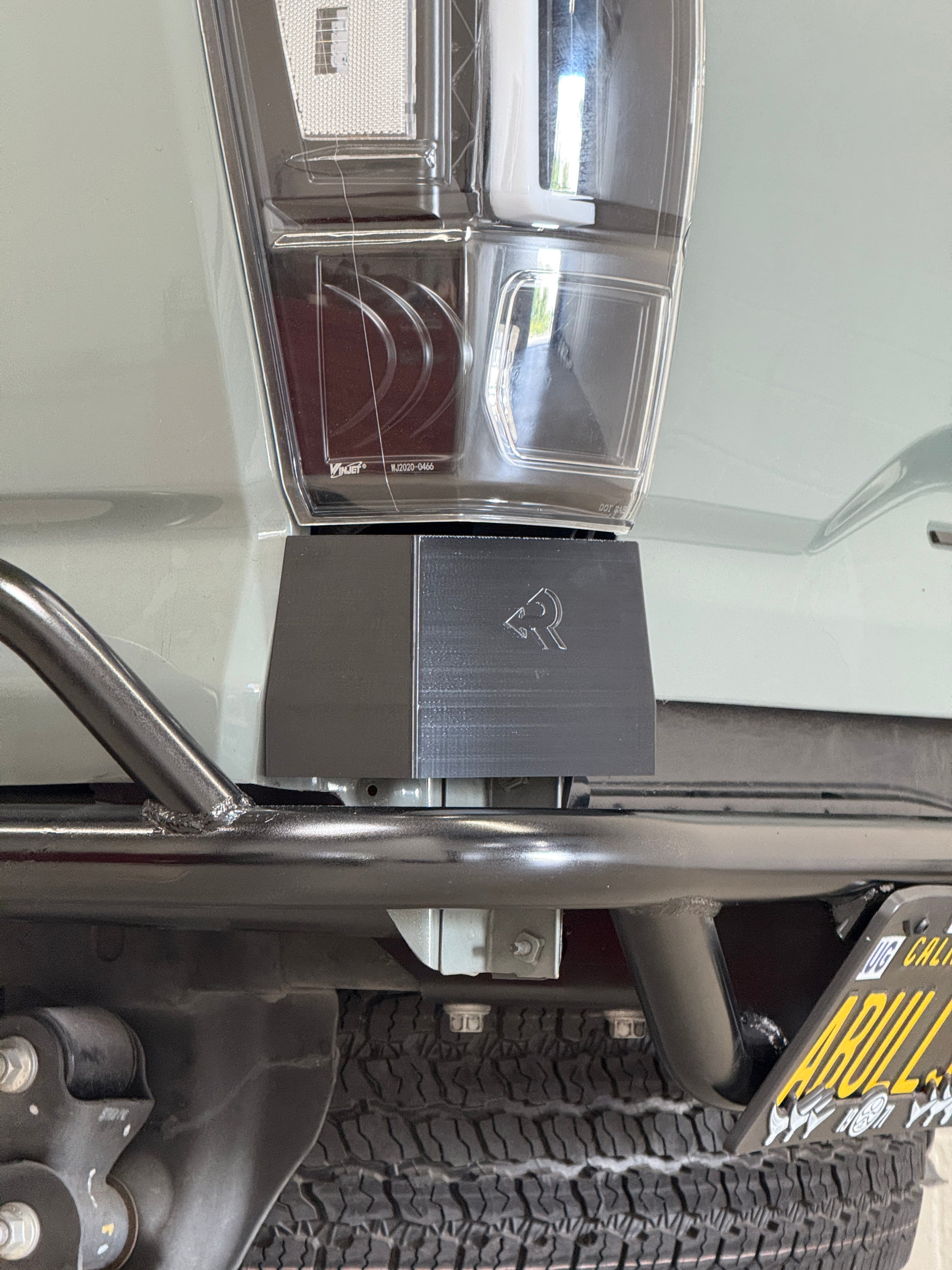

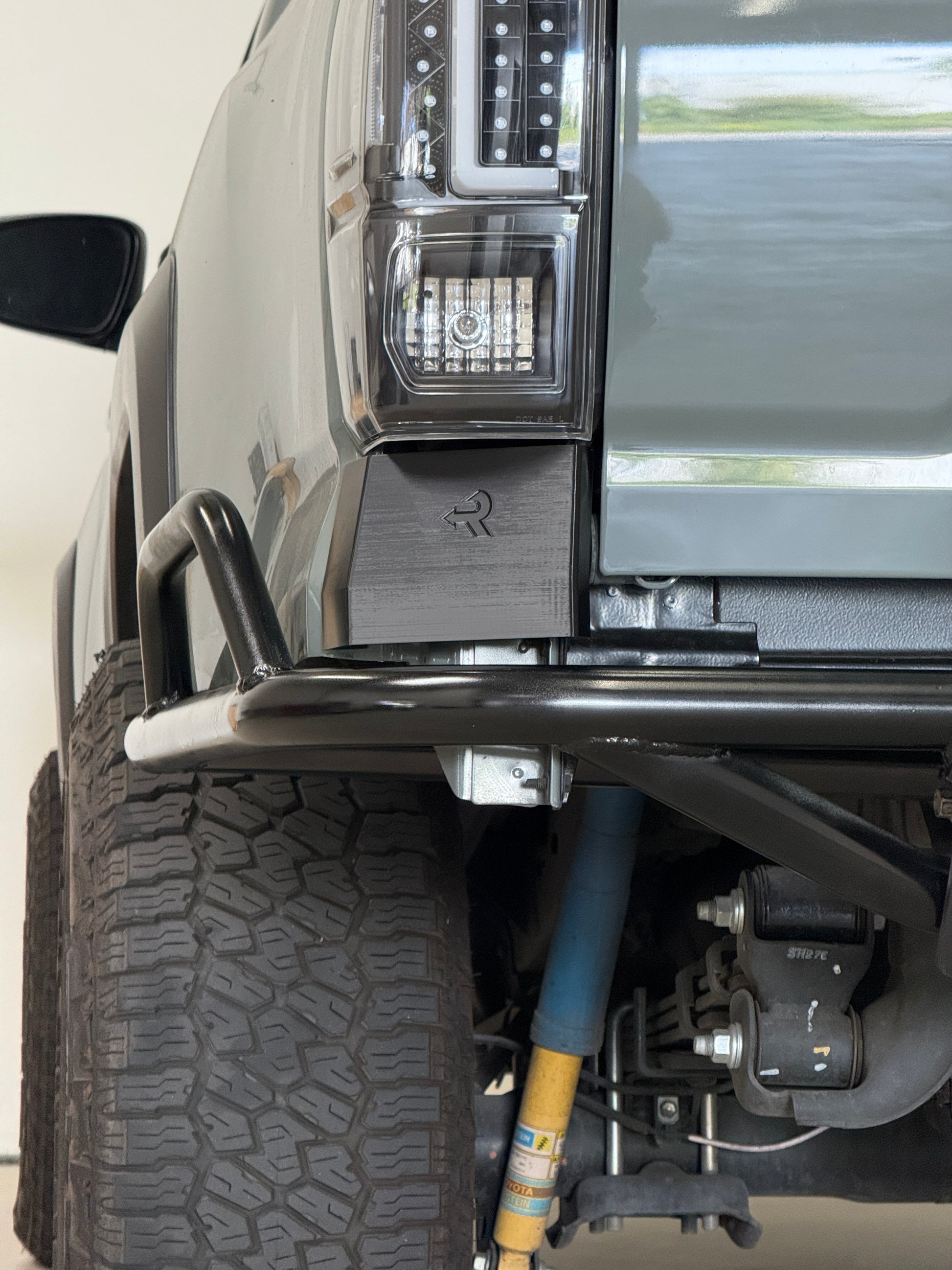

These caps cover the ugly area under your tail lights. They are 3D printed and come as a pair. Your paint code can be found near your VIN number and we recommend using a white primer before you color match them. All hardware is included for installation.
What’s Included:
(1) Driver Side Bed Cap Item: #BC1D
(1) Driver Side Bed Cap Item: #BC1P
(1) Bed Cap Mounting Plate Driver Item: #BC1X
(1) Bed Cap Mounting Plate Passenger Item: #BC1Y
(1) Bed Cap Jig Item: #BC1JIG
(10) Heat Nut Inserts
(10) M4 x 18mm Bolts
Directions:

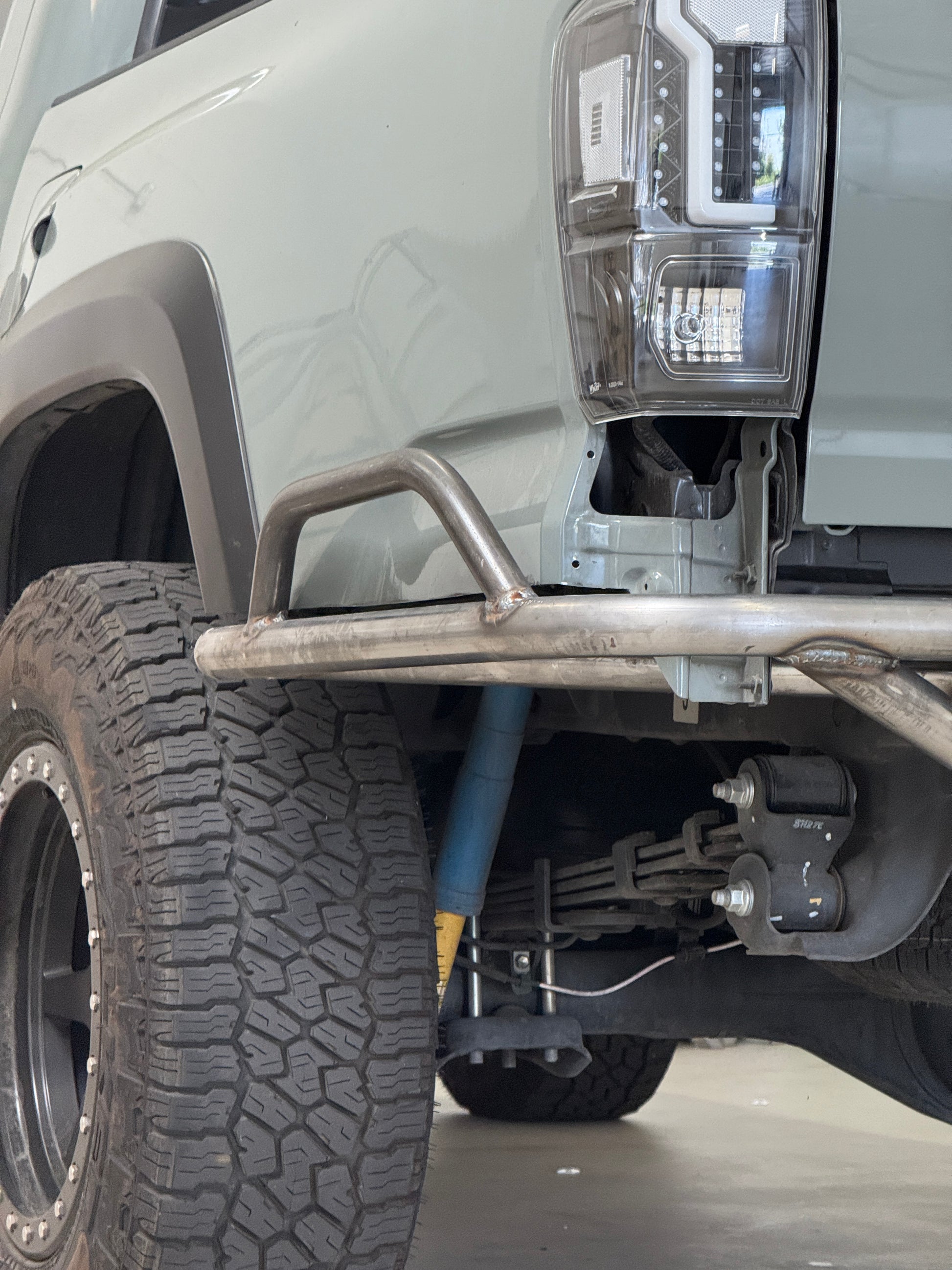

Remove small plastic OEM cover. Line up the JIG, make sure all spacing is symmetrical and straight. Mark the three holes with a sharpie. Hold up the cap and double check the 3 holes line up with the Bumper Caps. Drill 3/16” holes on each side and bolt in the Mounting Plate to the Bumper Cap. Then bolt the cap into the fender from inside the fender.
Tools required for installation:
M2.5 Allen Bit
Electric or Normal Screw driver Hex Drive
3/16” Drill Bit and Drill
